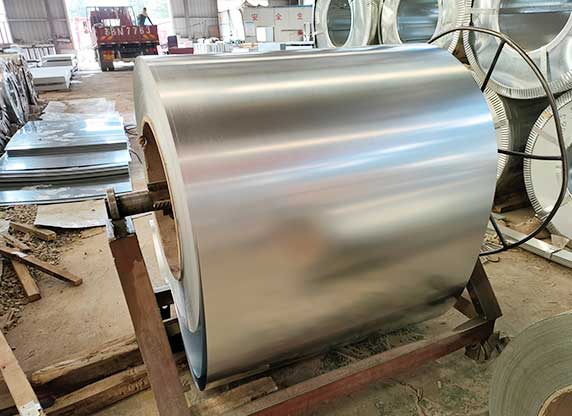

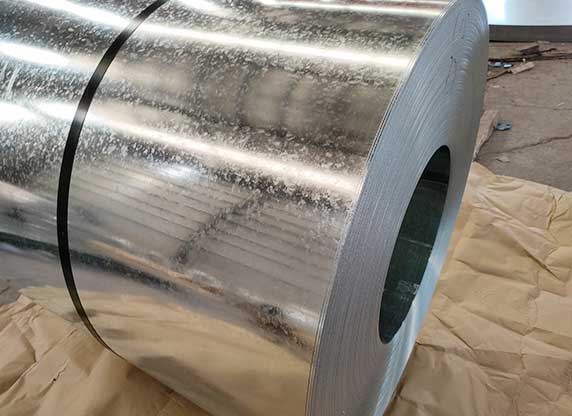

SGCC Hot Dip Galvanized Coil

stable quality, small thickness tolerance, sufficient carbon layer,
Various kinds of Zinc layer : 40g-275g
Test:SGS,BV or Third- party test
Delivery: 2-3days after deposit in stock
We’d love to hear from you

Contact us:

+86 13383877691

Galvanized coil hot dip Zinc plate (SGCC) : dip plated, bright white, small zinc flower (difficult to see), large zinc flower can clearly see hexagonal flower block.

SGCC has much better rust resistance.SGCC has much better rust resistance. The size of zinc flower and zinc layer thickness can explain the quality of zinc, the smaller the thicker the better. Manufacturers can also add fingerprint resistance. There is also can be distinguished by its coating, such as Z12 represents the total amount of double-sided coating 120g/mm.

Products Detail:

Product Name SGCC Galvanized Coil
Width 600-1500mm,1800-2000mm,2500-3500mm or as required
Thickness 0.3-3.5mm for Cold Rolled
Standard AISI, ASTM, DIN, JIS, GB, SUS, EN,etc
Coating Weight 40-275g/m2,double side
Spangle Big spangle, normal spangle, small spangle, non-spangle
Technology Hot Dipped
Certification: API, CE, RoHS, SNI, BIS, SASO, PVOC, SONCAP, SABS, si
Material GB: Q195, Q215, Q235A, Q235B, Q235C, Q235D, Q255A, 255B, Q275, Q295A, Q295B, Q345B, Q345C, Q345D, Q345E, Q390A, Q390B, Q390C,Q390D, Q390E, Q420, Q420B, Q420C, Q420D, Q420E, Q460D, Q460E, Q500D, Q500E, Q550D, Q550E, Q620D, Q620E, Q690D, Q690E
EN:S185,S235JR, S275JR, S355JR, S420NL, S460NL S500Q, S550Q, S620Q, S690Q,SS400,1020,1050,A3,45#,60#
ASTM: Grade B, Grade C, Grade D, A36, Grade 36, Grade 40, Grade42, Grade 50, Grade 55, Grade 60, Grade 65, Grade 80
JIS: SPCC, SS330, SPHC, SS400, SPFC, SPHD, SPHE
DIN: DC01, DC02, DC03, St12,St13, St14, St15
16Mo3,16MnL,16MnR ,16Mng,16MnDR
price terms: FOB,CRF,CIF,EXW  all acceptable
Application small household appliances, other general corrosion resistance of high sheet metal occasions.
Payment terms 30% T/T deposit in advance+70% T/T upon  B/L copy;  L/C at sight can be accepted
Export packing Waterproof paper, and steel strip packed.
Standard Export Seaworthy Package
Capacity 2000Tons/Month

Certifacte & Bill of Loading:

We have built solid business ship with most third party inspection organizations. The representatives are SGS, VELOX,BV, Intertek, TUV, PMI, BV,LR, GL, RINA, ABS, CCS, NK, DNV, KR, etc.

Some certificate of origin,we had CO, FORM E,and also if your country need, we will supply you.

Factory Machines:

In order to meet and exceed the expectations of users with excellent products and services, and in order to better become the benchmark of ecological civilization construction industry.  Our company has the following high quality machinery to meet the needs.  The picture below is only part of it. If you want to know more comprehensively and understand the strength of the company, please send email or leave a message online.

Company Culture:

Our company is a big family full of humanistic care.Except meeting of technicist,logistic,salesman before placing order,to confirm the billet,and when start testing quality and quantity, and when ship goods out.

And also had The party members’ meetings.Every month,we will have a big party to relax with our own family members,and colleagues.
